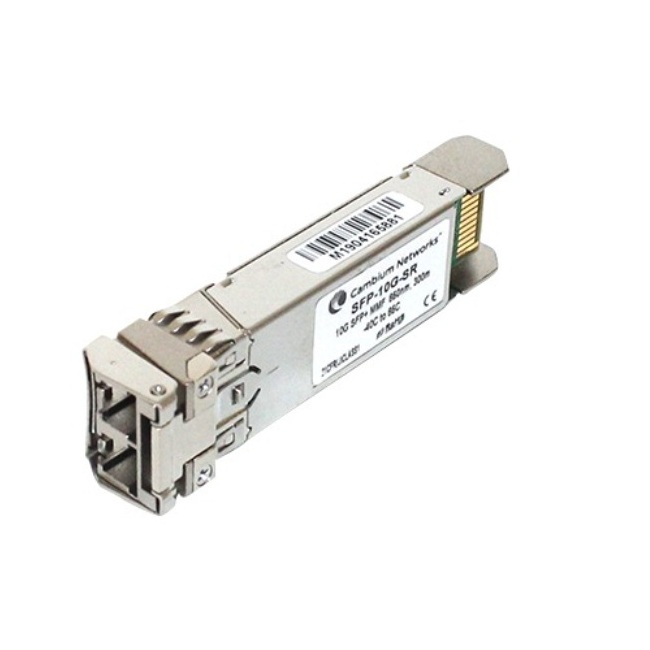

Cambium Networks SFP-10G-SR 10Gbps SFP+ MMF Optical Transceiver, 850nm, 300m

The SFP-10G-SR is a high-performance optical transceiver designed for short-range data transmission.

Operating at a wavelength of 850 nm, it supports data rates up to 10.3125 Gbps, making it ideal for 10GBASE-SR applications. With its compact design and advanced features, this transceiver ensures reliable and efficient communication over multimode fiber (MMF) up to 300 meters.

Features:

1. High Data Rates: Supports data rates up to 10.3125 Gbps.
2. Compliance: Optical interface compliant with IEEE 802.3ae 10GBASE-SR and electrical interface compliant with SFF-8431.
3. Hot Pluggable: Easily integrates with various devices and allows for hot-swapping.
4. Reliable Transmission: Utilizes an 850 nm VCSEL transmitter and PIN photo-detector for stable signal transmission.
5. Wide Temperature Range:Operates in temperatures ranging from -40 to 85°C, suitable for industrial environments.
6. Low Power Consumption: Designed for low power usage.
7. Short Distance: Supports MMF connections up to 300 meters.
8. EMI Performance: All-metal housing provides superior EMI performance.
9. Cost Effective: Enables higher port densities and greater bandwidth at a lower cost.
10. Environmental Compliance: RoHS6 compliant, ensuring it is lead-free and environmentally safe.

Applications:

1. 10GBASE-SR at 10.3125 Gbps
2. Various other optical transmission systems
